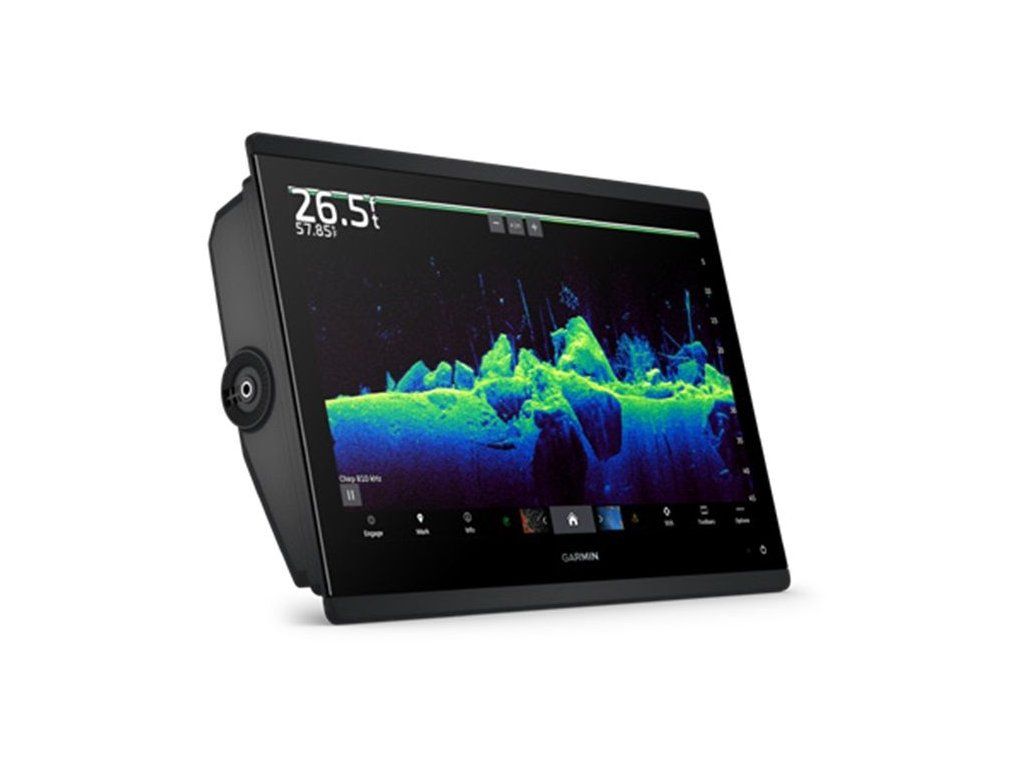

Top-notch navigation and sonar system designed for demanding users – ideal for anglers, yacht captains, and professionals who require accuracy, reliability, and versatility
Main Features:
-
16" Full HD IPS Touchscreen Display (1920 × 1080 px) – excellent readability in direct sunlight, high brightness, anti-reflective glass from edge to edge.
-
Support for the Latest Sonar Technologies – built-in 1 kW CHIRP sonar, ClearVü and SideVü Ultra-HD scanning. Compatible with Panoptix™ and LiveScope™ (transducer sold separately).
-
Extended Connectivity – Wi-Fi, Bluetooth, ANT+, dual Garmin Marine Network ports, NMEA 2000 and NMEA 0183, HDMI, USB, BNC video input, J1939.
-
SmartMode™ and OneHelm™ – allow quick switching between various functions like sonar, radar, cameras, digital switches, and multimedia.
-
SailAssist™ Functions – optimized for sailboats with features like laylines, Auto Guidance+, and wind assists.
-
Pre-installed Basic World Maps – with the option to expand with detailed Navionics+ or Vision+ maps.
-
Compatibility with Other Garmin Devices – autopilots, AIS, radars, engines, anchors, cameras, and more.
Technical Specifications:
-
Unit Dimensions: 38.4 × 26.2 × 7.6 cm
-
Weight: 4.4 kg
-
Display: 16" IPS, resolution 1920 × 1080 px
-
Waterproof Rating: IPX7 – resistant to splashing water and short-term immersion
-
GPS Receiver: 10 Hz, supports GPS, GLONASS, and Galileo
-
Memory Slots: 2× microSD
-
Data Storage: up to 5,000 waypoints, 100 routes, 50,000 track points
-
Power Supply: 10–32 V DC, max. consumption 46 W
-
Mounting: flush mount or bracket mount
Advantages:
-
Ideal solution for integrating navigation, sonar, radar, and other systems on one screen
-
Professional-level sonar display for fishing and detailed seabed exploration
-
Intuitive and fast control with customizable interface according to needs
-
Compatibility with the complete Garmin Marine ecosystem
